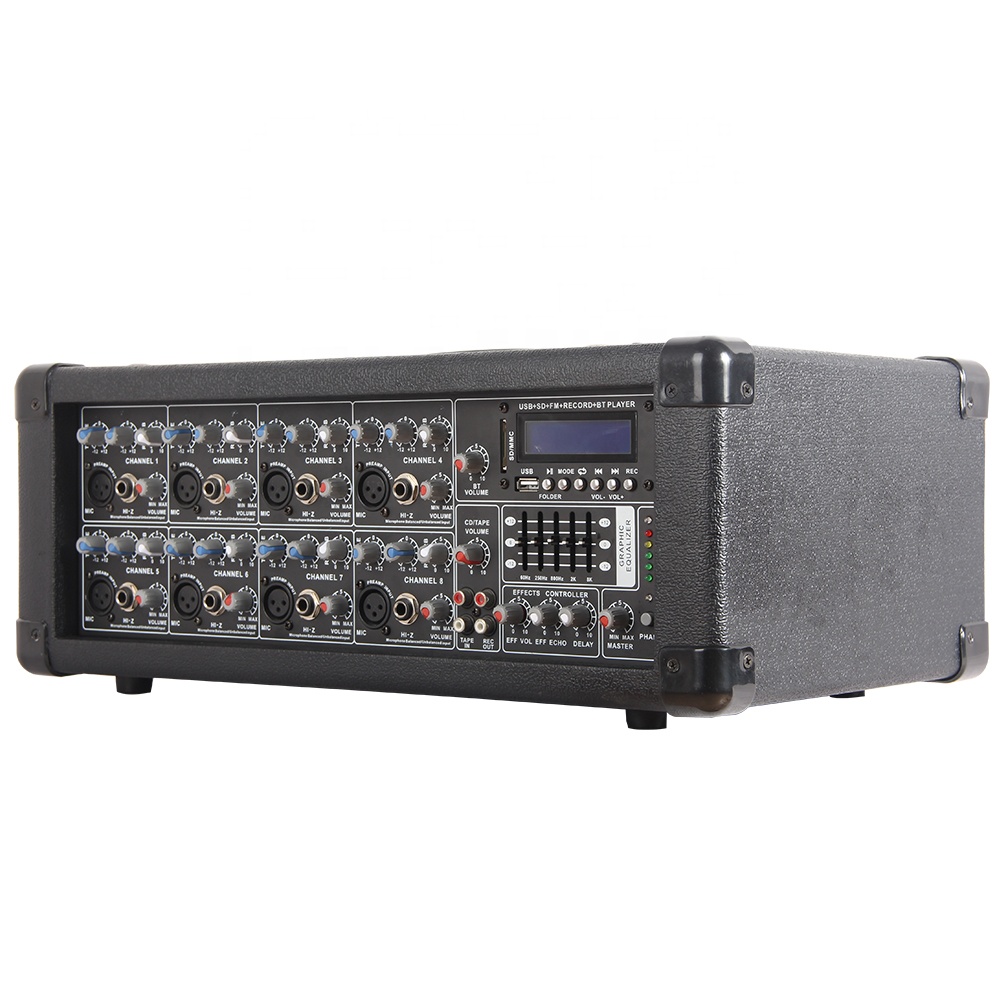

JMP8400BT Portable 8-Channel Power Mixer
1.Signal amplification and shaping function: The 8-channel amplifier has the function of signal amplification and shaping, which can extend the signal transmission distance and ensure the stability and reliability of the signal.
2.Independent volume adjustment: The volume of each channel can be adjusted independently, which is convenient for users to adjust the volume of each channel according to their needs.
3.Priority function: The microphone input has a priority function to ensure that the microphone signal can be transmitted first in case of emergency, ensuring the transmission of important information.
4.Multi-channel output: It supports multi-channel output, which is suitable for scenarios that need to process multiple signals at the same time, such as campus broadcast systems.
Product Details
The Portable 8-Channel Power Mixer features a 400W amplifier (4Ω) and offers 8 MIC/LINE inputs, with channels 9-10 supporting stereo inputs. It includes a built-in MP3 player with Bluetooth, phantom power for microphones, and a 3-band EQ on each channel. The mixer also has a 7-band graphic equalizer for both main and monitor outputs. Protection features include overheating, short-circuit, zero offset, and turn-on delay, along with a fan cooling system. It supports 8 Ohm speakers via 1/4" jack outputs and works with both AC115V 60Hz and AC230V 50Hz power supplies.
Specifications
Amplifier Power: 400W @ 4Ω
Input Channels: 8 MIC/LINE inputs (channels 9-10 accept stereo inputs)
Built-in MP3 Player: Includes Bluetooth functionality
EQ: 3-band EQ on each input channel
Graphic Equalizer: 7-band EQ for main and monitor outputs
Phantom Power: Available for all microphone inputs
Protection Features: Overheated, short-circuit, zero offset, and turn-on delay protection
Cooling System: Fan cooling for temperature regulation

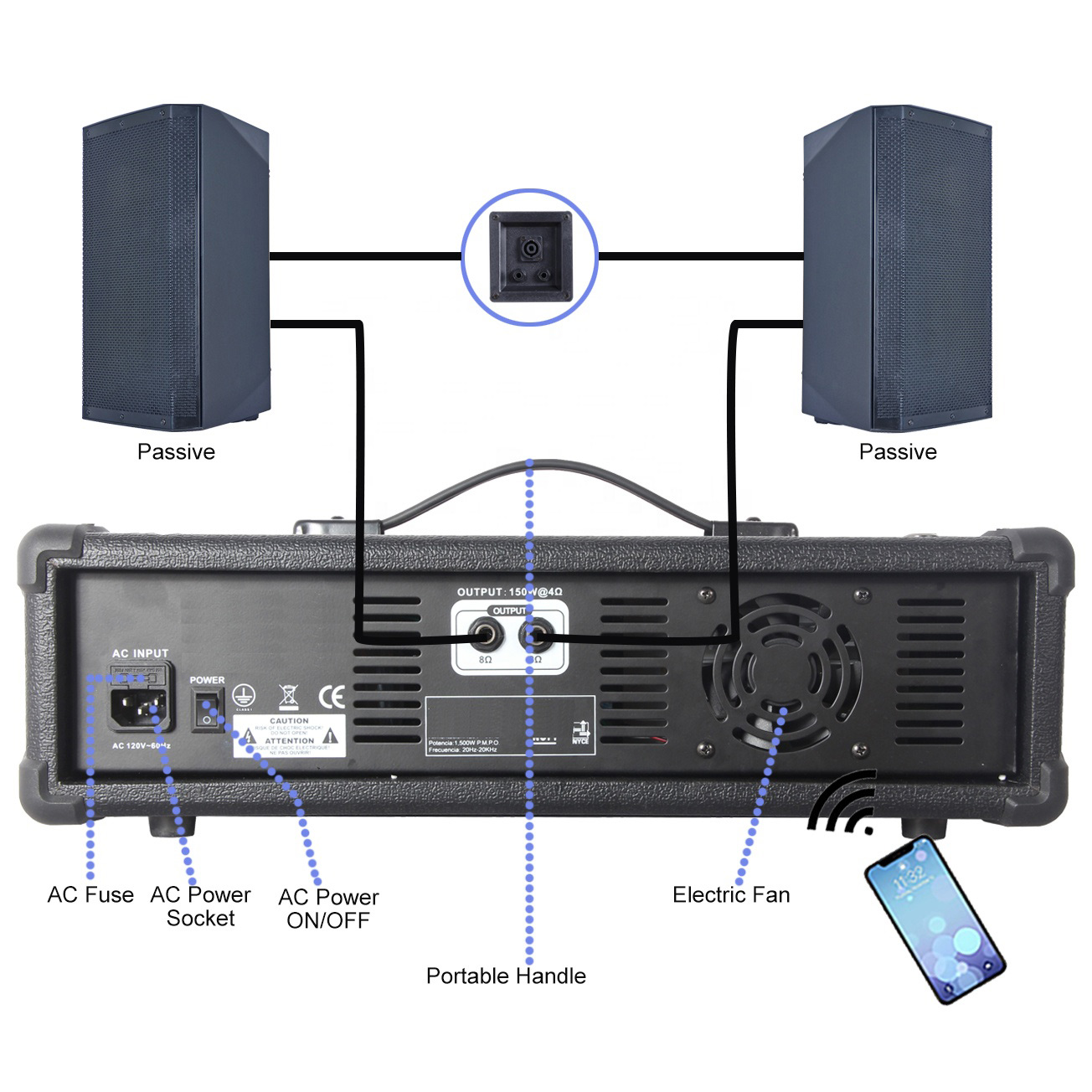

Power Output: Left+Right 1/4" jack for 8 Ohm speakers
Power Supply: AC115V 60Hz / AC230V 50Hz
Additional Inputs/Outputs: 1 group of stereo TAPE input and REC output
Indicator: 5 power output indicators
Features
1. 3-Band EQ on Each Channel: Allows fine control over bass, mid, and treble for each input
2. 7-Band Graphic Equalizer: Provides comprehensive equalization for both main and monitor outputs
3. Phantom Power: Available on all microphone input channels for condenser microphones
4. Power Indicator: 5 indicator lights show output power status
5. Protection Mechanisms: Includes overheating, short-circuit, zero offset, and turn-on delay protection to ensure safe operation
6. Cooling System: Equipped with a fan cooling system to maintain optimal performance during long sessions
